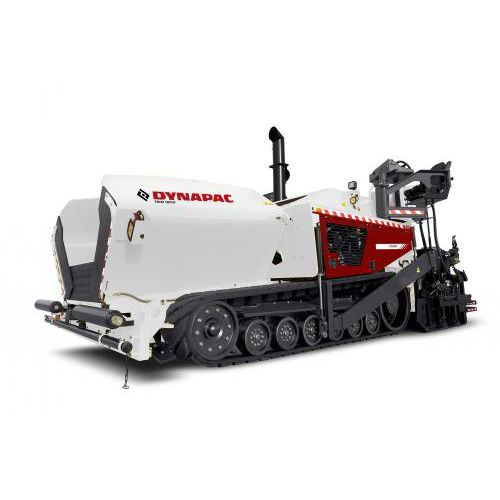

Asphalt paver F1000T (T4)

crawlerconveyorfuel

Weight - 15875 kg Tractor weight with rear ext screed - g Tractor weight with front ext screed - g Tractor weight including Mat Master screed - Traction Paving speed - 0-32 m/min Maximum paving speed - 73 m/min Transport speed - 16.0 km/h Engine Manufacturer/Model - Cummins QSB 6.7-220 (Tier 4i) Type - 6 cylinder water cooled diesel engine with hydraulically driven fan Electrical system - 24 V Fuel tank capacity - 370 l Rated power, SAE J1995 - 164 kW (220 hp ) @ 2000 rpm Generator (tractor mounted) - 34 kW, 60 Hz, Drive: Hydraulic Alternative Engine Manufacturer/Model - Cummins QSB 6.7-225 (Tier 4 Final) Type - 6 cylinder water cooled diesel engine with hydraulically driven fan Rated power, SAE J1995 - 225 hp @ 2300 rpm Operation Operator console - Dual Swing out Dashboard - Ergonomic dashboard with Multifunction display on each console Conveyor Conveyor type - Dual bar feeder Conveyor width - 2 x 685 mm Conveyor control - Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors.
