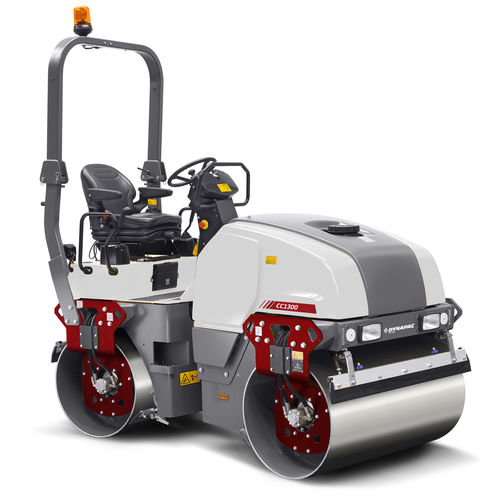

Vibrating road roller CC1300 Plus

tandem

Module mass (front/rear) - 1900 kg/ 2000 kg Traction Speed range - 0-10 km/h Vertical oscillation - ±10° Max. theoretical gradeability - 37 % Compaction Centrifugal force - 33 kN (V2203) / 36 kN (D1803) Nominal amplitude - 0.5 mm Static linear load (front/rear) - 14.6/ 15.4 kg/cm Vibration frequency - 52 Hz (V2203) / 53 Hz (D1803) Water tank - 200 l Engine Manufacturer/Model - Kubota V2203-M (IIIA) Type - Water cooled diesel engine Fuel tank capacity - 50 l Alternative Engine Manufacturer/Model - Kubota D1803-CR-TE4B(T4f) Type - Water cooled diesel engine Alternative Engine Model - Kubota D1803-CR-TE5B(StageV) Manufacturer/Model - Type - Water cooled diesel engine Hydraulic system Driving - Axial piston pump with variable displacement. Radial piston motors (2) with constant displacement. Vibration - Gear pump/motors with constant displacement. Steering - Gear pump with constant displacem. Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in both drums. Optional 3” seatbelt, Biodegradable hydraulic fluid, Cert. Fire protection (SBF 127), Decal risk location (GOST), Driving lights (right and left handed). Dual forward/reverse control, Fire extinguisher, Flow divider, Foot rest, Hearing protectors, Licence plate light, Rear view mirror (traffic view), Rotating beacon (ignition controlled), Service kit 50/500/1000H, Side direction lights (driving lights required), Slide lux seat, Slow moving vehicle sign, Special color (one or two), Spring loaded scrapers, Tool set, Towing eyelet, Water tank cover (lockable)
