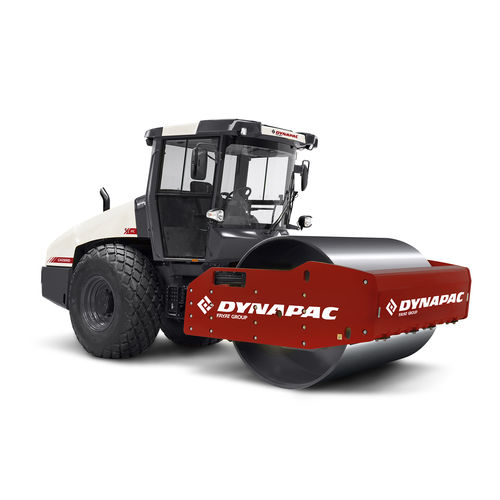

Single-cylinder road roller CA2500D HC

vibrating

Dyn@Link A tool to monitor and control their machine fleet efficiently and conveniently. Eco mode Big fuel savings with ECO! Efficiency Eccentrics ‘Efficiency Eccentrics’ save energy and fuel in Dynapac rollers! Stage IV / TIER 4f Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings. Module mass (front/rear) - 5700/ 4700 kg Traction Speed range - 0 - 12 km/h Tyre size (8 ply) - 23.1 x 26 AW Theor. gradeability, forward - 55 % Theor. gradeability, reverse - 55 % Vertical oscillation - ±9° Compaction Static linear load - 27 kg/cm Nominal amplitude (high/low) - 1.8 mm/ 0.9 mm Vibration frequency (high/low amplitude) SEISMIC available (values for manual mode) - 33 Hz / 34 Hz Centrifugal force (high/low amplitude) - 250 kN/ 130 kN Engine Manufacturer/Model - Cummins QSF3.8 (IV/T4final) Type - Water cooled turbo Diesel Fuel tank capacity - 255 l DEF tank capacity - 20 l Alternative Engine Manufacturer/Model - Cummins F3.8 (V) Type - Water cooled turbo Diesel Fuel tank capacity - l Alternative Engine Rated power [engine 3, hp] - 130 hp Rated power [engine 3, rpm] - rpm Type - Water cooled turbo Diesel Hydraulic system Driving - Hydrostatic Vibration - Hydrostatic Steering - Hydrostatic Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in drum gear box and in rear axle.
