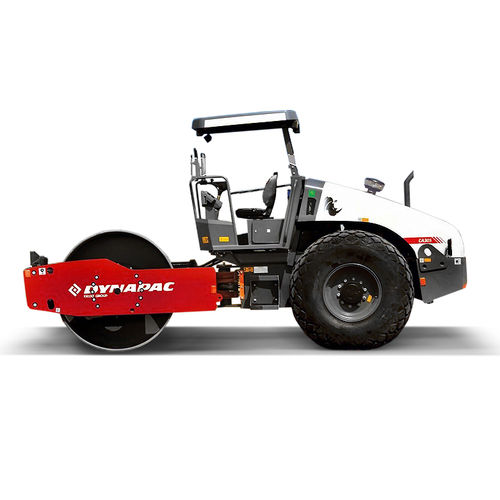

Single-cylinder road roller CA305

vibrating

Masses Operating mass (incl. Canopy) - 11200 kg Module mass (front/rear) - 6600 kg/ 4600 kg Max. operating mass - 12500 kg Traction Speed range - 0-5.5 km/h (working) 0-11 km/h (travel) Theor. gradeability - 34 % Vertical oscillation - ±9° Compaction Static linear load - 31 kg/cm Nominal amplitude (high/low) - 1.8 mm/ 0.9 mm Vibration frequency (high/low amplitude) - 33 Hz/ 33 Hz Centrifugal force (high/low amplitude) - 250 kN/ 130 kN Engine Manufacturer/Model - KOEL Type - Water cooled diesel engine Rated power (rating standard) - BS-III Rated power, SAE J1995 - 105 hp @ 2200 rpm Fuel tank capacity - 280 l Hydraulic system Driving - Hydrostatic Vibration - Hydrostatic Steering - Hydrostatic Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in rear axle and front drum motor.
