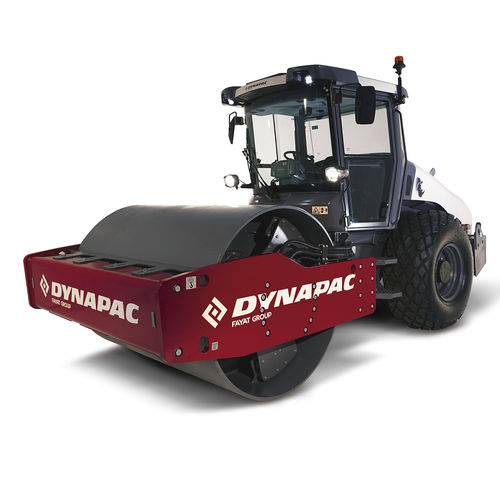

Single-cylinder road roller CA30D

vibrating

The CA30D is a vibratory roller designed for compaction operations in pipe trenches, on road shoulders and in cramped spaces in connection with refilling work. The roller is also suitable for repair work on dams, power stations, parking lots and airfields. The smooth drum version with drum drive (D) gives good maneuverability even on very steep slopes. Dyn@Link A tool to monitor and control their machine fleet efficiently and conveniently. Efficiency Eccentrics ‘Efficiency Eccentrics’ save energy and fuel in Dynapac rollers! Module mass (front/rear) - 6400/4900 kg Traction Speed range - 0 - 11 km/h (TC) Speed range: Single Speed/Dual Speed/Traction Control - 7 / 7 / 11 km/h Vertical oscillation - ±9º Max. gradeability with vibr. - 47 % Max. gradeability without vibr. - 65 % Compaction Static linear load - 30 kg/cm Nominal amplitude (high/low) - 1.8/0.9 mm Vibration frequency (high/low amplitude) - 33/33 Hz Centrifugal force (high/low amplitude) - 250/123 kN Engine Manufacturer/Model - Cummins QSF3.8 (IIIA/T3) Type - Water cooled turbo Diesel Fuel tank capacity - 280 l Electrical system - 12 V Alternative Engine Manufacturer/Model - Cummins 4BT3.9-102C (I/T1) Type - Water cooled Diesel Rated power, SAE J1995 - 76 kW (102 hp) @ 2300 rpm Fuel tank capacity - 280 l Electrical system - 12 V Hydraulic system Driving - Hydrostatic Vibration - Hydrostatic Steering - Hydrostatic Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in rear axle and front drum motor.
