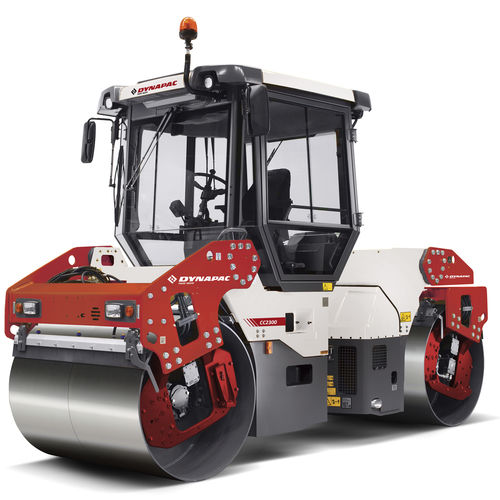

Vibrating road roller CC3300

tandem

A tool to monitor and control their machine fleet efficiently and conveniently. Big fuel savings with ECO! Module mass (front/rear) - 4500 kg/ 4500 kg Traction Speed range - 0-12 km/h Vertical oscillation - ±7° Max. theoretical gradeability - 35 % Compaction Split drums - Yes Centrifugal force (high/low amplitude) - 82 kN/72 kN Nominal amplitude (high/low) - 0.5 mm/0.2 mm Static linear load (front/rear) - 26.0 kg/cm / 26.0 kg/cm Vibration frequency (high/low amplitude) - 48 Hz/67 HZ Water tank volume - 750 l Engine Manufacturer/Model - Deutz TCD 3.6 HT T4f Type - Water cooled turbo Diesel Fuel tank capacity - 130 l Alternative Engine Manufacturer/Model - Cummins QSB 3.3 IIIA/T3 Type - Water cooled turbo Diesel Alternative Engine Manufacturer/Model - Deutz TCD 3.6 HT StageV Type - Water cooled turbo Diesel Hydraulic system Driving - Axial piston pump with variable displacement Axial piston motors (4) with variable displacement Vibration - Axial piston pumps (2) with variable displacement Axial piston motors (2) with constant dispacement Steering - Gear pump with constant displacem. Service brake - Hydrostatic in forward and reverse lever. Parking/ Emergency brake - Failsafe multidisc brake in both drums.
