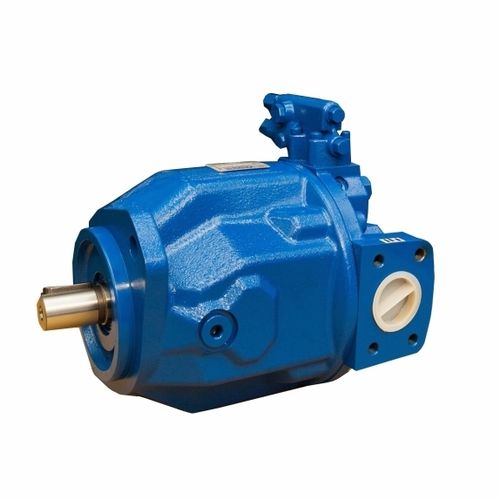

Hydraulic axial piston pump PA10VSO series

flangestandard

1. Rapid responsibility, low noise and low pulsation. 2. 9 pistons and prefilled swash plate design. 3. Sturdy heavy duty Casting body, high working pressure. 4. Complete lines of compensators, and meet different demand of hydraulic systems. 5. Double or Multiple pumps connections are available. 6. Standard ISO and SAE flange mountings and pipe threading. 7. Available for both Industrial and mobile hydraulic systems. The finer the filtration the better the cleanliness level of the hydraulic fluid and the longer the service life of the axial piston unit.In order to guarantee the functional reliability of the axial piston unit it is necessary to carry out a gravimetric evaluation of the hydraulic fluid to determine the particle contamination and the cleanliness level according to ISO 4406. A cleanliness level of at least 20/18/15 must be maintained.At very high hydraulic fluid temperatures (195 °F (90 °C) to maximum 239 °F (115 °C)), a cleanliness level of at least 19/17/14 according to ISO 4406 is necessary.If the above cleanliness levels cannot be maintained, please contact us
