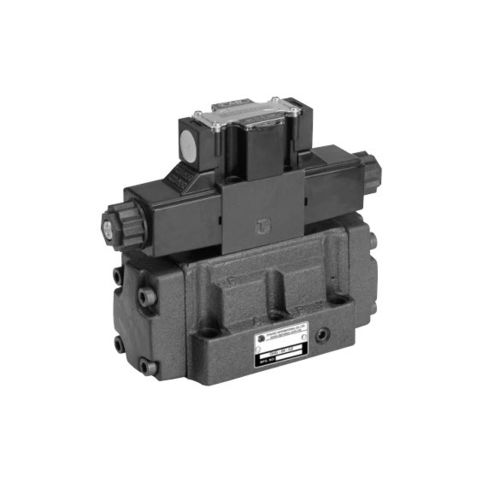

Spool hydraulic directional control valve DHG series

solenoid-operatedpilot-operated

Features: 1. - High Pressure, high capacity. 04 sériés up to 300 L/min, 06 sériés up to 500 l/min, 10 sériés up to 1100 L/min. 2. - Low pressure loss. The flow path design provides wide range of low pressure loss and enhance system circuit efficency. 3. - Long service life. ■ SPECIAL SPOOL Spring offset valves with alternate solenoid: Through our standard sproing offset models use solenoid "B", Alternate models using solenoid 'A" are also ovailable. The graphie symbols are expressed as below. For model 2B&A and 2B&B, refer to the table below. ■ Valves with Center position and one offset position (Spécial two position valves) In addtion to the standard two position valves shown on the table (page 10-12), two kinds of valves are availablve with center position and either one of two offset positions. Standard and alternate offset types use solenoid "b" and solenoid *a" respectively.
