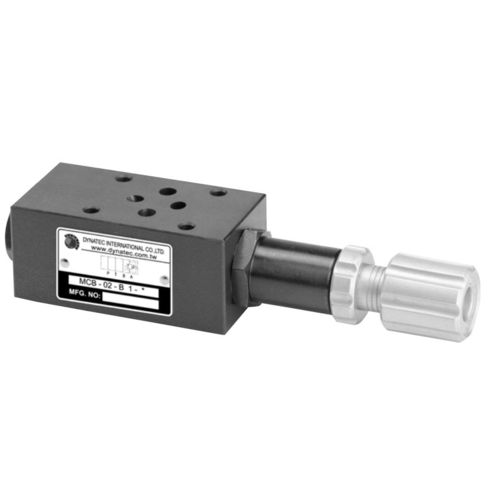

Hydraulic pressure relief valve M series
modularback pressure

hydraulic pressure relief valve
hydraulic pressure relief valve
hydraulic pressure relief valve
hydraulic pressure relief valve
hydraulic pressure relief valve
Add to favorites
Compare this product


Characteristics

Other characteristics
hydraulic, modular, back pressure
Flow rate

Min.: 6 l/min
(1.59 us gal/min)

Max.: 10 l/min
(2.64 us gal/min)

Description

1.MRV sériés modular relief valves provides maximum pressure control of hydraulic circuit. 2.Wide range of operarting pressure, adjusting range from 8 to 250 kgf/cm2. 3.Wide range of applicabilité maximum working pressure 250 kgf/cm2. Handling: 1.For using as a safty valve, setting the pressure that is higherthen the required circuit pressure. 2.Make sure that the tank port back pressure is not greater then 2 kgf/cm2. 3.When flow rate is too small may causes the pressure instablility, we recommand flow rate as following: 02:No less then 6 L/min. 03:No less then 8 L/min. 06:No less then 10 L/min.
