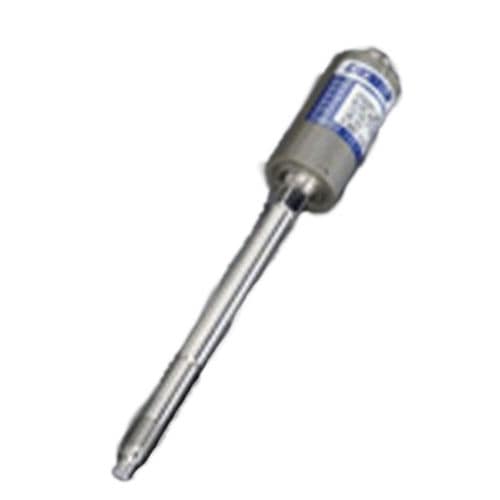

Absolute pressure transducer MDA420

membraneanalogmelt

The MDA420 transducers provide the industry standard 3.33 mV/V signal designed to work with most pressure indicators. The MDA420 comes equipped with an eight pin Bendix connector. Optional thermocouple or RTD configurations are available to provide melt temperature. The MDA420 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of other electrical connections if desired. Specifications DyMax® coated stainless steel wetted parts Proven sensor design Excellent thermal stability and repeatability Internal 80% shunt calibration
