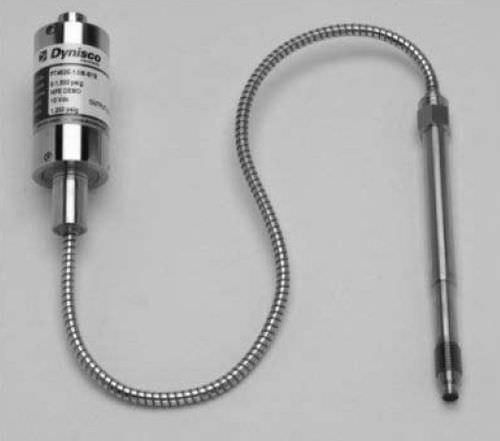

Absolute pressure transducer PT46X5

membraneanalogdigital

The PT46X5 Series transmitter is a +/- 0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X5 transmitters provide the industry standard 0 - 5 Vdc amplified signal designed to work with DCS and PLCs, 1 - 6 Vdc outputs are also available. The PT46X5 comes equipped with zero and span pots to adapt the transmitter to process conditions. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT46X5 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections. Specifications Adjustable zero and span Dymax® coated stainless steel wetted parts 0 - 5 Vdc and 1 - 6 Vdc outputs Internal 80% shunt calibrations Adapt transmitter to process conditions Repeatable, reliable pressure measurements Superior abrasion resistance Direct input to supervisory control systems Wide variety of pressure ranges Easy to calibrate and use
