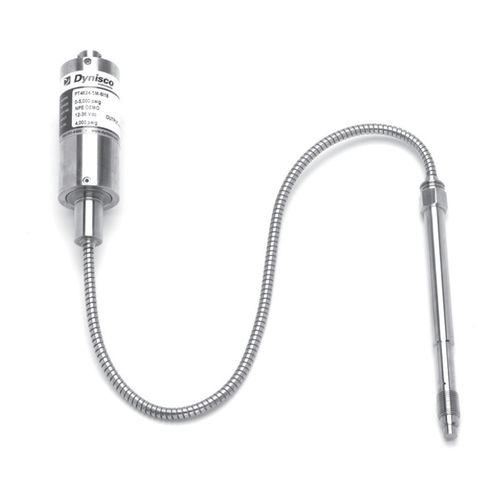

Relative pressure transmitter Dyn-X-V110VDCstainless steelprocess
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Supply voltage
- 110VDC
- Material
- stainless steel
- Applications
- process, melt
- Pressure range
Max.: 10,000 psi
Min.: 0 psi
- Precision
0.1 %
- Process temperature
Max.: 400 °C
(752 °F)Min.: -29 °C
(-20 °F)
Description
The DYN-X-V transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs. The DYN-X-V comes equipped with zero and span pots to adapt the transmitter to process conditions. Optional thermocouple or RTD configurations are available to provide melt temperature. The DYN-X-V features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections.
Specifications
Adjustable zero and span
DyMax® coated stainless steel wetted parts
0 - 10 Vdc outputs
Internal 80% shunt calibrations
