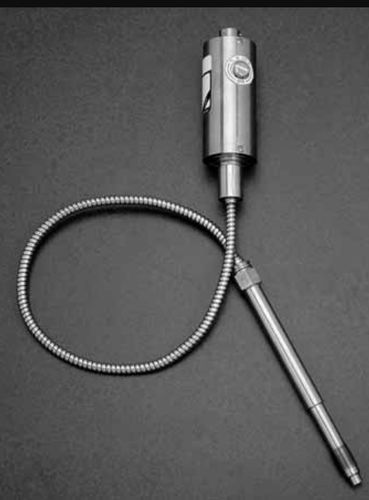

Relative pressure transducer MRT 462

stainless steelprocessmelt

Now, users can select from among four pressure ranges on one transducer with the new Dynisco MRT, the first multi-range pressure transducer. By simply turning a rotary switch via an access pot on the transducer, four potential pressure ranges can be selected. The transducer can be ordered so that the equivalent psi, bar, Kg/cm2 or MPa ranges can be chosen. This revolutionary melt pressure transducer offers maximum versatility to handle changing process conditions and materials. Specifications Reliable pressure measurement Four user selectable pressure ranges in one model Maximizes inventory flexibility Externally selectable range via rotary switch Maximum versatility for changing process conditions 3.33 mV/V FSO for selected range Standard low level output Internal 80% shunt calibration Easy set-up All stainless steel wetted parts Corrosion resistant Proven sensor design Good stability and repeatability
