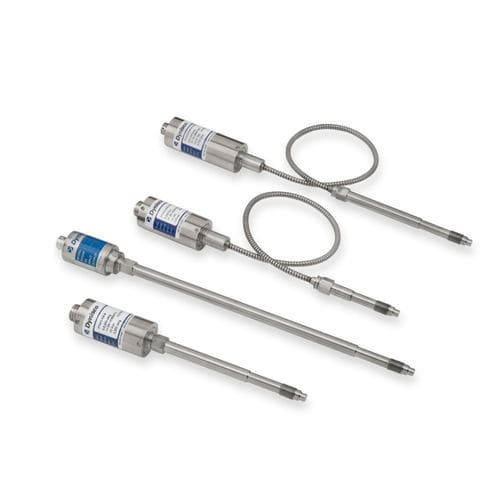

Relative pressure transmitter PT46X6 4-20 mAstainless steelprocess
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Output
- 4-20 mA
- Material
- stainless steel
- Applications
- process, melt
- Pressure range
Min.: 0 psi
Max.: 30,000 psi
- Precision
0.5 %
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 400 °C
(752 °F)
Description
The PT46X6 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs, 1 - 11 Vdc outputs are also available. The PT46X6 comes equipped with zero and span pots to adapt the transmitter to process conditions. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT46X6 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections.
Specifications
Adjustable zero and span
DyMax® coated stainless steel wetted parts
0 - 10 Vdc and 1 - 11 Vdc outputs
Internal 80% shunt calibrations
VIDEO
Catalogs
PT46X6
3 Pages
