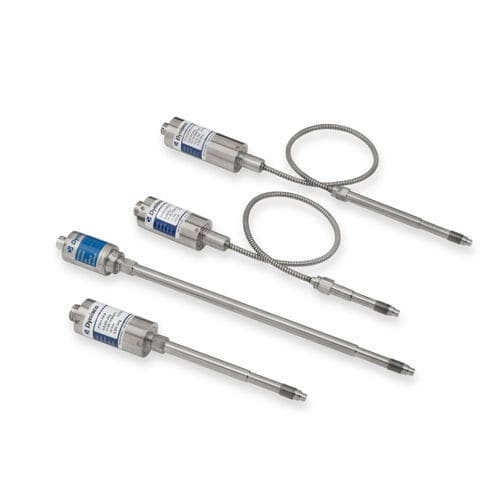

Relative pressure transmitter PT4196threadedfor the food industryfor medical applications
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Mounting
- threaded
- Applications
- for the food industry, for medical applications, melt
- Pressure range
Min.: 0 psi
Max.: 10,000 psi
- Precision
0.5 %
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 315 °C
(599 °F)
Description
The food grade oil fill material meets the requirements set forth by both the USDA and the FDA. The PT4196 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT4196 features a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes.
Specifications
Adjustable zero and span
Oil fill meets FDA dn USDA requirements
DyMax® coated convoluted SST wetted parts
0 - 10 Vdc output
Internal 80% shunt calibration
VIDEO
Catalogs
PT4196
3 Pages
