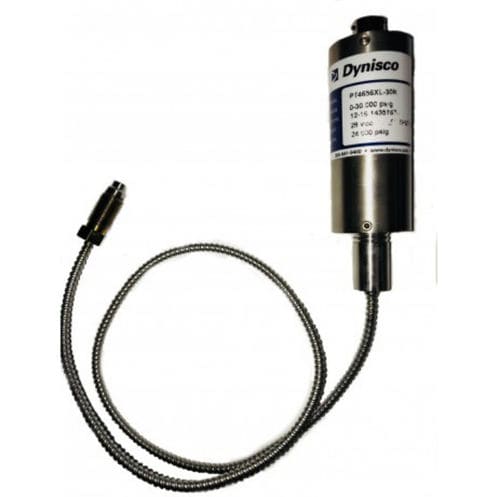

Relative pressure transducer PT4656XLstrain gaugefor injection molding machineswith amplified output
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- strain gauge
- Applications
- for injection molding machines
- Other characteristics
- with amplified output
- Pressure range
Max.: 30,000 psi
Min.: 0 psi
- Precision
1 %
- Process temperature
400 °C
(752 °F)
Description
A protective flexible armored cable extends from its electronic housing to the tip for unmatched strength and increased life. Each model has a built - in amplifier to provide 0 to 5 Vdc (PT4655XL), 1 to 6 Vdc (PT4655BXL), 0 to 10 Vdc (PT4656XL) or 1 to 11 Vdc (PT4656BXL) output to data acquisition or SPC/SQC programs. The amplified signal offers better resistance to noise than standard mV/V strain gauge outputs
Specifications
1" flex bend radius
Inconel 718 diaphragm
Free spinning jam nut
Adjustable zero and span
0 to 5 Vdc, 1 to 6 Vdc, 0 to 10 Vdc or 1 to 11 Vdc outputs
