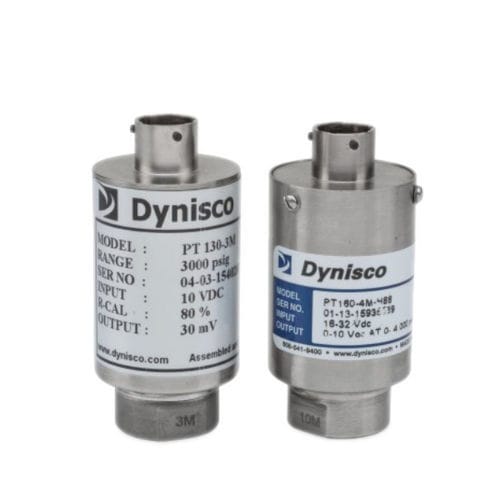

Relative pressure transducer PT130stainless steelruggedprocess
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Material
- stainless steel
- Protection level
- rugged
- Applications
- process, for hydraulic applications, for injection molding machines
- Other characteristics
- compact, high-temperature
- Pressure range
Min.: 0 psi
Max.: 10,000 psi
- Precision
0.5 %
- Process temperature
Min.: -54 °C
(-65 °F)Max.: 120 °C
(248 °F)
Description
The series withstands cyclic pressure and provides outstanding performance under the severe demands of measuring the injection ram and clamp pressure of injection molding machines. Variations in the hydraulic pressure profile indicate irregularities during the injection and feeding stages of the molding operation and provide information about the stability of the injection ram system.
Specifications
3 mV/V output
All welded, stainless steel construction
Rugged design
Internal shunt calibration
Compact
