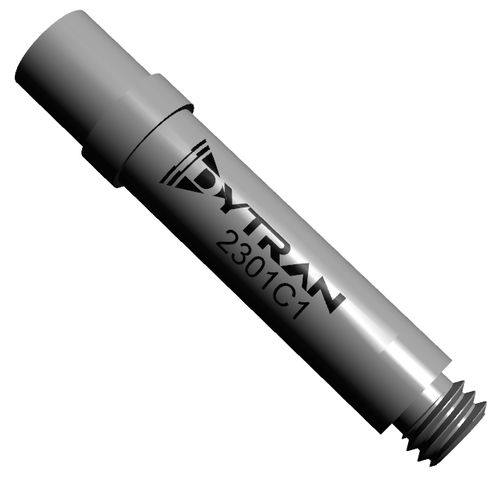

Piezoelectric pressure sensor 2301C1 analoghigh-temperature
Add to favorites
Compare this product
Characteristics
- Technology
- piezoelectric
- Output
- analog
- Other characteristics
- high-temperature
- Pressure range
Max.: 15,000 psi
Min.: 100 psi
- Process temperature
260 °C
(500 °F)
Description
The High-temperature Pressure Sensor Model 2301C1 comes with a sensitivity of 1 pC/psi and ultra fast rise times. The product is made of titanium and it has hermetic floating clamp nut. It has 0.35 pC/psi sensitivity and the maximum resonant frequency is 500 kHz. The PSI range is 100 and the maximum pressure is 15,000 PSI. It comes with 10-32 axial connectors and a 5/16-24 mounting thread. The product weighs 6.5 grams and the maximum operation is +500°F or +260°C. Lastly, the product is utilized is high-cycle environments, it as blast measurement, shock tubes and the general purpose is it has high frequency pressure measurements.
