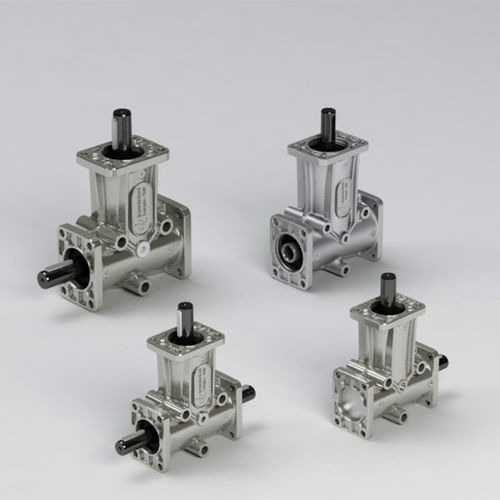

Angle gear drives DZ, ZP series

Right-angle gear drives DZ, ZP series are designed for industrial applications where it’s necessary to transmit a rotary motion of power between two or more axes arranged at 90° to each other. DZ and ZP series are available in 9 different sizes, with 2 o 3 outputs with transmission ratios 1/1 or 1/2 or 1/3. In addition to the standard series is a wide special range of angle bevel gears to customer’s specifications. HOUSING Single-piece aluminium alloy casting with 4 or 6 mounting points and 3 or 4 centering conditions. A stainless steel version is also available. GEARS SPIRAL bevel gears cut on GLEASON hobbing machines to ensure maximum load capacity. Nickel-chrome steel gears with surface case-hardened gear teeth; this ensures maximum service life while leaving the tooth core tough and flexible to resist mechanical shocks. Units are manufactured with backlash tolerances to ensure perfect gear engagement and silent operation. Backlash tolerances can be reduced to a minimum of 5’ if specifically requested; ask for details of special prices and delivery conditions on these orders. SHAFTS Manufactured in steel with 80 Kg/mm2 surface treatment for corrosion protection.Shaft coupling on the power take-off is by ISO standard keyways (except for Size 1 and 201). Keyways can be made at any angle. A stainless steel version is also available. BEARING Large bearings in deep races. In specific cases, tapered rollers and/or bias bearings are used.
