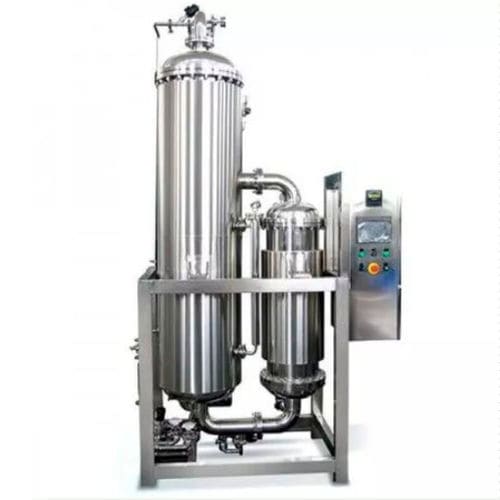

Electric steam generator ECSG-01 series

water tubeverticalpure

Pure Steam Generators are designed and constructed to comply with the requirements of PIC/S GMP, cGMP and GAMP of FDA. The main part of evaporator is using SS316L stainless steel (double tube plate design). All contact surfaces including the parts that contacted with infeed water are electric polished and passivated. The connection area is using sanitary type entrainment, and gaskets are adopted Teflon material. The equipment is equipped with HMI control, touch screen panel, and monitor. Adopting high-density glass wool insulation. Features Water purity control: Using diverter valve, resistivity indicator and controller, and resistivity recorder. Low steam supply pressure, low water supply pressure, and it will automatic shutdown and the alarm warning will appear under high-pressure situation. Water level switch button & Temperature controller. Steam source coding control. Feed water control. Water supply control. Cooling water control. Applications During the SIP (steam in place) processes, injecting steam into sterilizers, sanitizing the pipe system, tanks, and reactors. It applies to the enterprises that need high-quality steam to operate and require rigorous quality, such as Pharmaceutical, Biotechnology, Medicine industries and Sanitary / Hospital fields. Design Characteristic The pure steam generators are designed and manufactured with materials that comply with FDA, PIC/S GMP, cGMP and GAMP requirements. The main part (double tube plate) of stainless steel evaporator is using SS 316L. All internal surfaces, including surfaces that contacted with infeed water, are processed with mirror electric polished and passivated.
