Medical camera module See3CAM_130

educationfor retailVGA

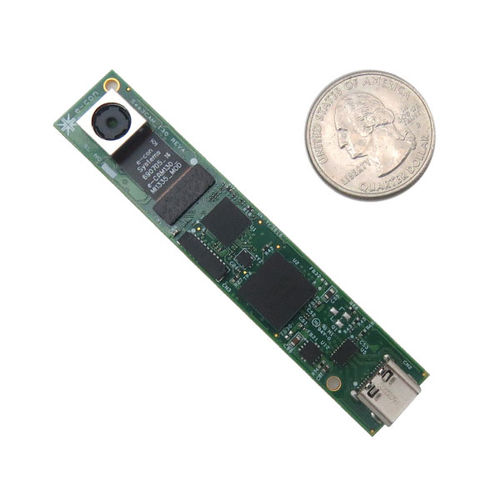

See3CAM_130 is an UVC-compliant AR1335 sensor based 13MP autofocus USB camera with iHDR support. It supports 4K Ultra HD (3840x2160) at 30fps over USB3.1 Gen1 in compressed MJPEG format. This See3CAM_130 can also stream Full HD (1920x1080) at 60fps and HD (1280x720) at 60fps in both uncompressed and compressed MJPEG formats. This autofocus USB camera board is also backward compatible with USB 2.0, although, in USB 2.0, this camera supports fewer resolutions at lower frame rates. This high-resolution USB camera has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to a complete image signal processing pipeline that provides best-in-class images and video and the MJPEG compression. Key Features of 4k Board Caméra > - Houses e-CAM130_MI1335_MOD -13 MP AR1335 Color Caméra Module > - Auto Focus > - Electronic Rolling Shutter > - Output format: Uncompressed UYW format and Compressed MJPEG format > - Plug-&-Play (UVC compliant - No drivers required)and Backward compatibility with USB2.0 hosts with limited features and capabilities > - Supported OS - Windows 10, Windows 8, Windows 7, Linux, Android ** and MAC *** > - USB3.1 Gen1 device with CX3 chip - Cypress USB SuperSpeed controller and USB3.1 Gen1 Type C connector. > - Operating Voltage: 5V +/- 5%, Current - 370mA > - Operating Température Range : -30°C to 70°C > - Power requirements > - Max : 1.85W > - Min : 1.21W > - 10 pin GPIO header > - External Hardware Trigger input for 3d sync and External trigger 8t 13MP still capture with Zero-lag-shutter > - iHDR support
