CMOS camera module e-CAM160_MI298_MOD

MIPIfull HD4K

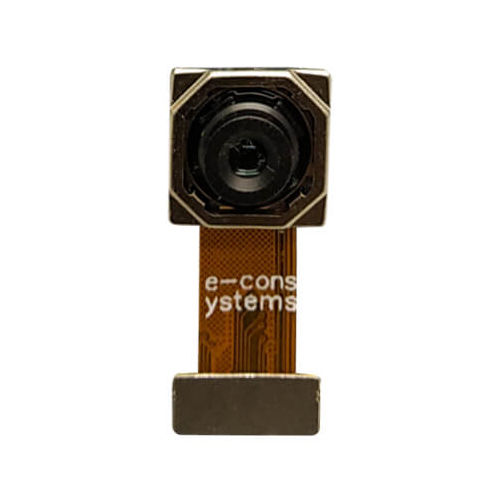

e-CAM160_MI298_MOD - 16MP Sony IMX298 AutoFocus Camera module e-CAM160_MI298_MOD is a high performance, 16MP color Autofocus 4-lane MIPI CSI-2 camera module. This small form factor camera module is based on 1/2.8" Sony Exmor RS IMX298 CMOS image sensor with 1.12μm pixel size. The e-CAM160_MI298_MOD is a flex PCB camera module and VCM Autofocus lens is soldered directly on to the board. - 16.0 MP Colour caméra with 4-lane MIPI CSI-2 interface - Focus Type - Auto Focus (VCM driven) - 1/2.8" Optical Form-factor - Output format: RAW8 (8 bits/pixel) and RAW10 (Raw 10-bit) - Size in mm (LxWxH): 22.1 mm x 8.65mm x 5.65mm - RoHS Compilant
