VGA camera module e-CAM131_CUNX

CMOSMIPIfull HD

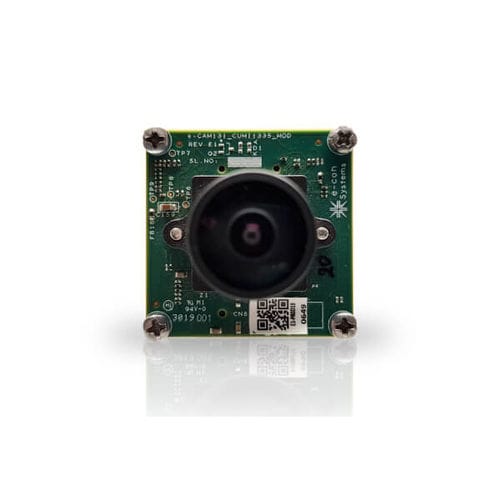

e-CAM131_CUNX is a 4K Ultra HD fixed focus MIPI color camera for NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ developer kit. e-CAM131_CUNX is based on a 13 MP AR1335 CMOS Image sensor from ON Semiconductor®. It has a dedicated Image Signal Processor chip (ISP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This 4K MIPI camera can be developed by any V4L2 application. The high-resolution MIPI camera can be directly connected to the MIPI CSI-2 interface on the NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ developer kit. * Houses e-CAM137A_CUMI1335_MOD - 13MP Caméra Module with S-mount lens holder * Multi board solution * High-speed MIPI CSI-2 interface to connect with the CPU * Plugs in to NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ Developer Kit * Linux caméra driver (V4L2) for 13MP MIPI CSI-2 caméra module * Operating Température Range: -30°C to 70°C * Power Consumption: > Max : 1.65W * Sample application for image capture & Preview * Gstreamer-1.0 support for video recording and network streaming * Lightweight, versatile, and portable design * RoHS compliant * Launched on: 30 Dec 2020
