Momentary push-button switch TL2205 series

LED-illuminatedon/off

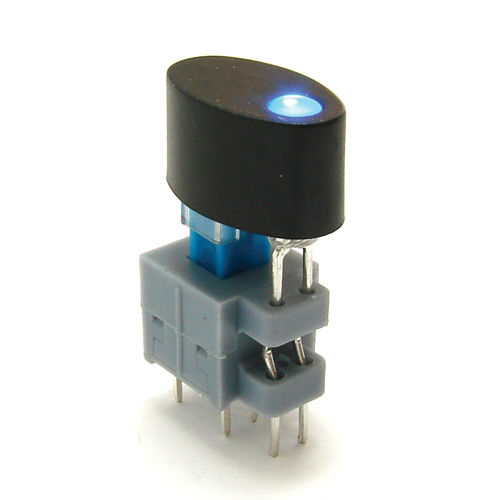

The TL2205 Series illuminated pushbutton switches are available as either maintained (latching) or momentary push buttons featuring long travel and a variety of LED colors: blue, red, green, yellow, or none. An optional black cap with an LED window is also available. The TL2205 Series illuminated pushbutton switch has a double pole, double throw (DPDT) circuit. Full travel of the push button is 2.5mm. The maintained version of the switch latches at 1.5mm. Both versions require 250 grams of operating force to actuate. Applications for this illuminated pushbutton switch include: • Telecommunications • Networking • Lower power on/off designs • Performance audio FEATURES • Multiple LED illumination colors • Optional cap with LED window • 100mA, 30VDC electrical rating • Through-hole mounting design • DPDT, maintained (latching) or momentary pushbuttons
