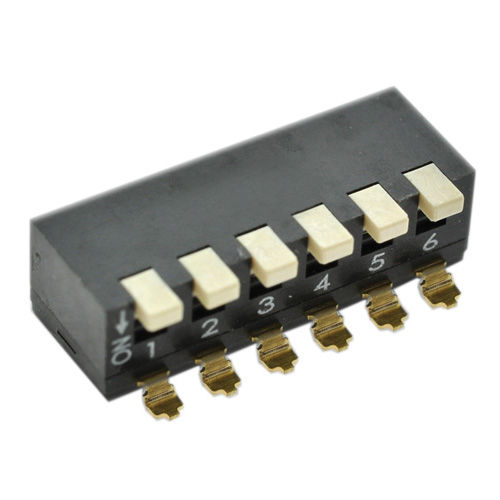

Piano type switch KAC series
DIPmultipolefor harsh environments

Piano type switch - KAC series - E-SWITCH - DIP / multipole / for harsh environments
Piano type switch - KAC series - E-SWITCH - DIP / multipole / for harsh environments
Add to favorites
Compare this product


Characteristics

Type
DIP, piano type
Number of poles
multipole
Protection level
for harsh environments
Other characteristics
electromechanical
Primary current

25 mA, 100 mA

Voltage

24 V, 50 V

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -20 °C
(-4 °F)

Description

The KAC Series piano DIP switch offers a choice of splayed, through hole PC board pin termination or gull wing, surface mount termination. It comes with a choice of tape and reel packaging or tube packaging. The extended actuator on this piano DIP switch can be placed in two, four, six, eight, or 10 positions. Measuring just 5.0mm high and 6.0mm wide, this is a low profile DIP switch. The KAC Series low profile, piano DIP switches have an initial electrical rating of 25mA of 24VDC and a carry, or steady-state rating of 100mA, 50VDC. These DIP switches operate in temperatures ranging from -20 to 85°C, making them great for harsh environments. Possible applications for these low profile DIP switches include but are not limited to: • Audio/visual • Computer peripherals • Consumer electronics • Instrumentation • Telecommunications • Medical equipment FEATURES • Replaced KAR series in 2012 • Through-hole and surface mount DIP switch • 2, 4, 6, 8, or 10 actuator positions • Tube or tape and reel packaging options
