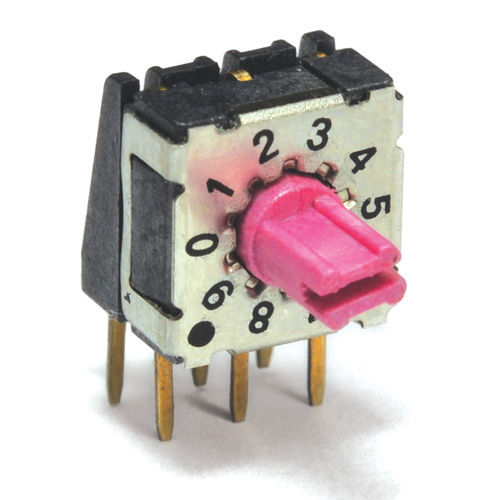

Rotary switch RDM series

DIPmultipolewaterproof

The RDM Series rotary DIP switches offer an IP67 ingress protection from dust and moisture. Perfect for product applications that may have exposure to the elements, this small rotary DIP switch comes in an ultra slim package size for high density mounting. This RDM Series rotary DIP switch comes with gold contacts and either 10 or 16 actuator positions. There are three actuator types, with a flush actuator or extended actuators 4.5 and 4.2mm long. With right angle or vertical termination, you have surface mount or PC board pin design options. This DIP switch is durable, with a life expectancy of 25,000 steps, and it operates in temperatures ranging from -60 to 125ºC. This ultra slim rotary DIP switch fits many applications, including but not limited to: • Audio/visual • Computer peripherals • Consumer electronics • Instrumentation • Telecommunication • Medical equipment FEATURES • Offers IP67 rated protection from dust and moisture • 10 or 16 positions • Right angle or vertical mount • Ultra slim size
