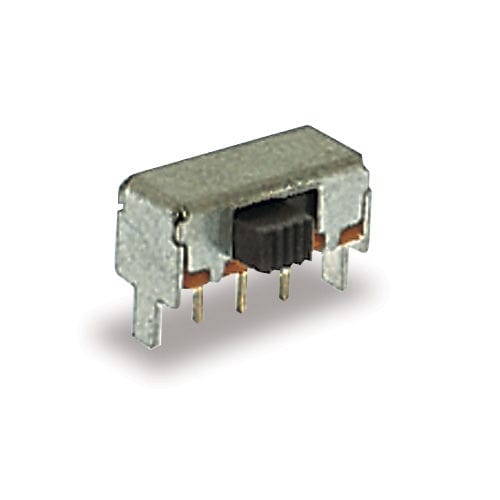

Slide switch EG series

multipoleflame controlsubminiature

EG Series subminiature slide switches offer dozens of customization options to help you get the package style and size that you need. They are available with circuits up to six poles, and some are available for panel mounting with PC board pin termination and vertical or horizontal actuator options. The EG Series slide switches are electrically rated for 200mA, 30VDC. These custom slide switches operate in temperatures ranging from -20 to 70°C. Please look at the data sheet to see the full range of slide switches available. Applications for this subminiature slide switch include: • Computer/peripheral • Consumer electronics • Instrumentation • Test/measurement markets FEATURES • Up to 6 poles available and up to 6 actuator positions • Panel and PC board mounting designs • Vertical and horizontal actuation options
