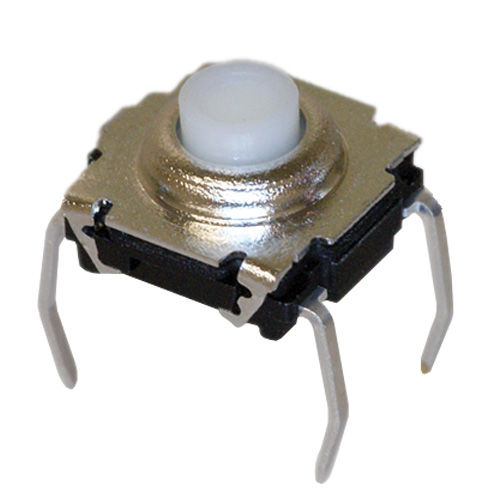

Tactile switch TL6100 seriessingle-polewaterproofactuator
Add to favorites
Compare this product
Characteristics
- Type
- tactile
- Number of poles
- single-pole
- Protection level
- waterproof
- Other characteristics
- sealed, actuator
- Primary current
50 mA
- Voltage
12 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
The TL6100 Series tactile switch offers multiple actuator heights and a long operating life of up to one million cycles. These tactile switches are process sealed and offers the following operating force options: 130gf, 160gf, 300gf, or 500gf. The TL6100 Series tact switches operate in hot or cold climates, from -40 to 85°C. The TL6100 tact switch is 7.4mm x 7.4mm in size and is rated for 50mA of 12VDC electrical current. Applications for this switch include, but aren't limited to:
• Consumer electronics
• Telecommunications
• Audio/visual
• Medical
• Computer servers
• Testing/instrumentation
FEATURES
• Process sealed tactile switch
• 130gf, 160gf, 300gf, and 500gf operating force options
• Through-hole mounting design
• Silver or gold plated contacts
