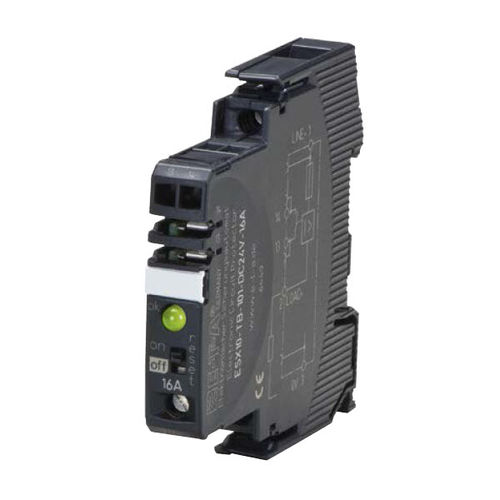

Short-circuit circuit breaker ESX10-TBmodularfor electronicsmolded case
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- short-circuit
- Operating mode
- modular
- Applications
- for electronics
- Other characteristics
- molded case
- Primary current
Max.: 16 A
Min.: 0.5 A
- VDC
Max.: 24 V
Min.: 10 V
Description
The ESX10-TB-101-DC24V-16A is an extension of the ESX10-T range for DC24V and is the first product to complete a comprehensive protection range with ratings from 0.5 A to 16 A.
At a width of only 12.5mm it provides selective protection for all DC 24 V load circuits. This is achieved by a combination of active electronic current limitation in the event of a short circuit and overload disconnection typically from 1.15 times rated current. The ESX10-T is track-mountable and provides ease of installation for groups of devices with several circuits.
