Electronically controlled circuit breaker ESS30-SovercurrentDCoverload
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- overcurrent, DC, overload, short-circuit
- Operating mode
- modular, electronically controlled
- Applications
- motor protection, for DC applications, for electronics, electrical power supply
- Number of poles
- single-pole
- Other characteristics
- miniature, DIN rail, compact
- Primary current
Min.: 0.5 A
Max.: 10 A
- VDC
24 V
Min.: 18 V
Max.: 30 V
Description

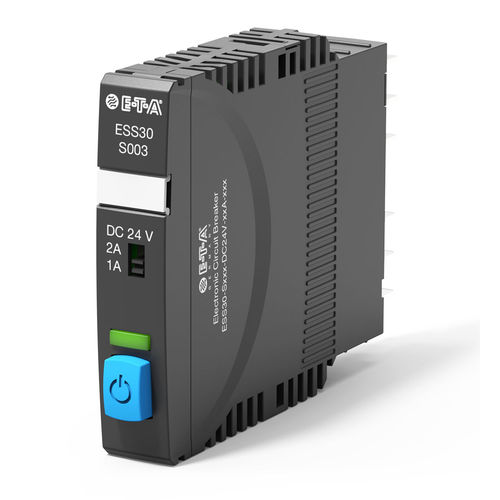

The electronic circuit protector ESS30-S with physical isolation is the globally unique electronic overcurrent protection for DC 24 V applications as a “low energy breaker”. For the use in decentralised and centralised power supply units, it meets the requirements to DIN EN 60934, to UL1077 as a Supplementary Protector and to UL 1310 as “Class2 power unit” (NEC class2). The compact device can be plugged into the terminal blocks 17plus and 18plus and into the SVS power distribution systems and ensures quick and easy installation.
