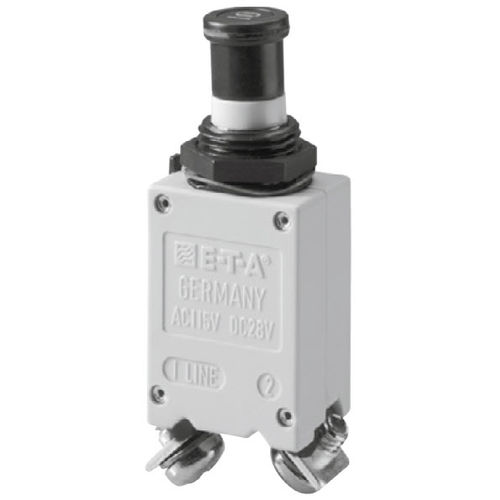

Thermal circuit breaker 483 seriesmanual resetsingle-poleminiature
Add to favorites
Compare this product
Characteristics
- Type
- thermal
- Operating mode
- manual reset
- Number of poles
- single-pole
- Other characteristics
- miniature
- Primary current
Min.: 1 A
Max.: 35 A
- VAC
115 V
- VDC
28 V
Description
Single pole, miniaturised, aircraft style thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted, available in metric and US (MS 3320) configurations. Advanced two-chamber design contributes to fail-safe operation. Temperature compensated from -55° to +125 °C, with optional auxiliary contacts, and fully approved for use on a wide range of aircraft and equipment. Full specification ensures suitability for the most demanding applications.
For three pole version see type 583.
