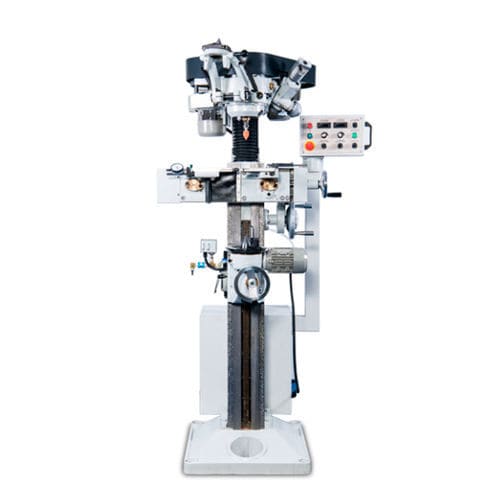

Workpiece grinding machine EGH seriesautomatic
Add to favorites
Compare this product
Characteristics
- Applications
- workpiece
- Control type
- automatic
- Spindle speed
22,500 rpm
(141,372 rad.min-1)- Power
0.25 kW
(0.34 hp)
Description
Workpiece max. grinding length mm 1000
Workpiece min. grinding length - mm - 50 - 100
Workpiece Max. diameter - mm - 125 - 180
Workpiece Min. diameter - mm - 8 - 30
Cone angle of center holes - deg - 60 - 60
Max. diameter of center hoie - mm - ip60 - ip60
Min. diameter of center hoie - mm - 1.5 - 1.5
Max. weight of workpiece - kg - 100 - 250
Workpiece rotation speed - rpm - 25 - 25
Planetary axis motor - kw - 0.12 - 0.12
Workpiece driving motor - kw - 0.12 - 0.12
Dust collect motor - kw - 0.75 - 0.75
