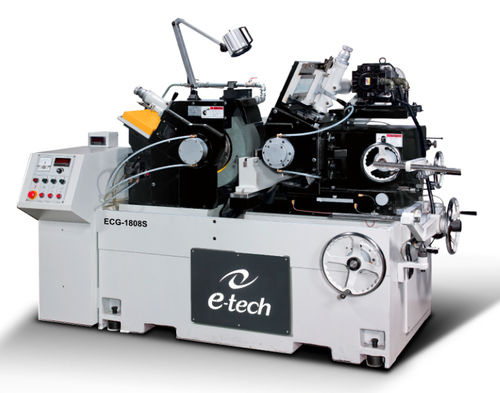

Centerless grinding machine ECG-S series

workpiecemanualhydraulic

Due to different working diameters, the guide plate and regulating wheel must be parallel as this influences the grinding accuracy significantly. Part name：Step shaft Infeed grinding + auto-loading/unloading Material：SCM415 Removed stock：Max. ∅0.2mm Cycle time：25sec(loading/unloading included) Roundness：1.5μm Part name：Ball Piston Infeed grinding + auto-loading/unloading Material：SCM415 Removed stock：Max. ∅0.3mm Cycle time：26sec(loading/unloading included) Part name：Piston pin Thrufeed grinding Material：SCr21H Removed stock：Max. ∅0.13mm Feedrate：3m/min Roundness：1.2μm Standard accessories Tools and tool box Standard coolant tank Wheel extractor Diamond dresser Levelling bolts and blocks Grinding wheel with flange Regulating wheel with flange Spindle lubrication system w/ cooling fan Regulating wheel with flange Manual lubricator for guide ways (S model) Operation manual and part lists Thrufeed workrest Infeed workrest Control panel (S model) PLC controller + touch screen + control panel (NC model) FANUC 0i-TF CNC controller (CNC model) Optional accessories Vibration feeder auto. loading system Auto. unloading system for thrufeed grinding Forming attachment (forming plates) Coolant system with magnetic separator Thrufeed blade (various sizes) Infeed blade (various sizes) Hydraulic forming attachment Coolant system with paper filter Coolant system with magnetic separator & paper filter Infeed grinding workpiece eject attachment ( hydraulic / pneumatic ) Auto. loading system for thrufeed grinding (Φ5∼25mm, L 50∼600mm) Hopper type auto. loading system for thrufeed grinding (Φ2∼8mm, L 50∼180mm) Input rail & output rail
