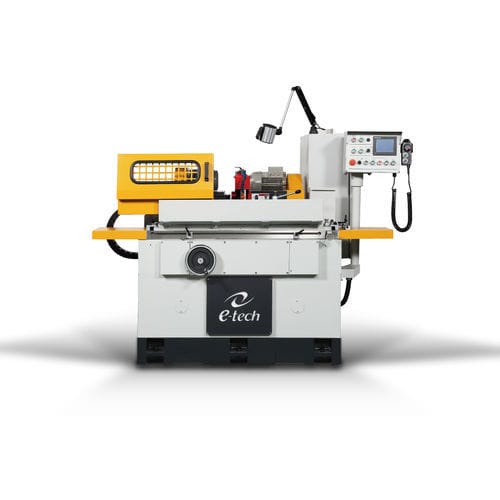

Internal cylindrical grinding machine EGP seriesworkpieceNCmanual
Add to favorites
Compare this product
Characteristics
- Type
- internal cylindrical
- Applications
- workpiece
- Control type
- NC, manual
- Spindle speed
10,000 rpm, 20,000 rpm, 30,000 rpm, 40,000 rpm, 50,000 rpm
(62,832 rad.min-1, 125,664 rad.min-1, 188,496 rad.min-1, 251,327 rad.min-1, 314,159 rad.min-1)- Power
4 ch, 5 ch, 7.5 ch, 10 ch
(4 hp, 5 hp, 7.5 hp, 10 hp)- Distance between centers
500 mm, 600 mm, 1,000 mm, 1,500 mm, 2,000 mm
(20 in, 24 in, 39 in, 59 in, 79 in)
Description
Step 1 : Choose the following functionsL Grinding mode selection / Infeed selection / Table parking selection / Jog setting / Next screen.
Step2 : Input data to set total stock removal, total fine grinding amount, rough increment, fine increment, spark-out passes and reset distance, and then press cycle start to complete the automatic grinding cycle.
