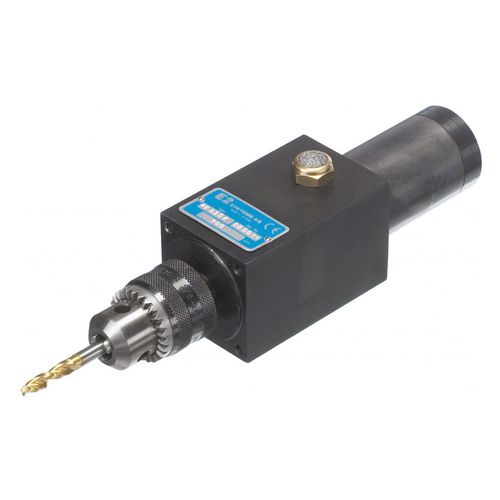

Pneumatic drilling unit BE 33 SK series
single-spindle

Pneumatic drilling unit - BE 33 SK series - E2 Systems - single-spindle
Pneumatic drilling unit - BE 33 SK series - E2 Systems - single-spindle
Add to favorites
Compare this product


Characteristics

Drive type
pneumatic
Other characteristics
single-spindle
Rotational speed

Min.: 500 rpm
(3,141.6 rad.min-1)

Max.: 21,000 rpm
(131,946.9 rad.min-1)

Torque

Min.: 0.37 Nm
(0.27 ft.lb)

Max.: 12.6 Nm
(9.29 ft.lb)

Description

The BE 33 SK consists of an air motor, a gear box and a body. The design is compact as well as robust. BE 33 SK comes in a wide range of speeds, and is available for lubrication-free operation. Sturdy and compact design Wide range of rpms Directed exhaust Chuck alternatives up to Ø20 mm Is available in counter clockwise rotation

Catalogs

E2-catalog
E2-catalog
30 Pages
