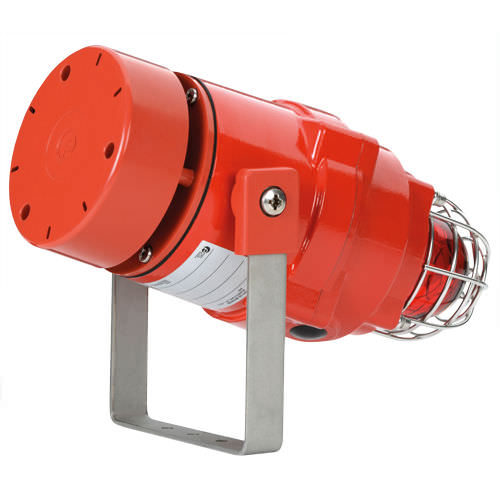

BExCS110-05-R/BExDCS110-05-R Omnidirectional Horn & Strobe
The flameproof BExCS110-05-R combination alarm sounder and Xenon beacon with omni-directional horn is suitable for Zone 1 & Zone 2 applications and the BExDCS110-05-R version also for Zone 21 & 22.
The unique radial horn on the compact BExCS110-05-R distributes the audible warning signal omni-directionally allowing the visual signal to be orientated optimally. Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.
Features:
Omni-directional sound output.
Automatic synchronisation on multi-beacon
& sounder systems.
Beacons can be set to ip-op alternating mode
with other units on multi-beacon systems.
Xenon tubes mechanically secured against shock
& vibration
Ratchet adjustable stainless steel U bracket.
Programmable version available:
- 45 alarm tones
- 4 remotely selectable stages
- Any tone can be assigned to any stage
- User congurable continuous frequency tone
Approvals:
ATEX certicate: KEMA 01ATEX2223X,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 61241-0 : 2006, EN 61241-1 : 2004
IECEx certicate: IECEx KEM 10.0025,
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
GOST-R certicate: POCC GB.JB05.B03365
