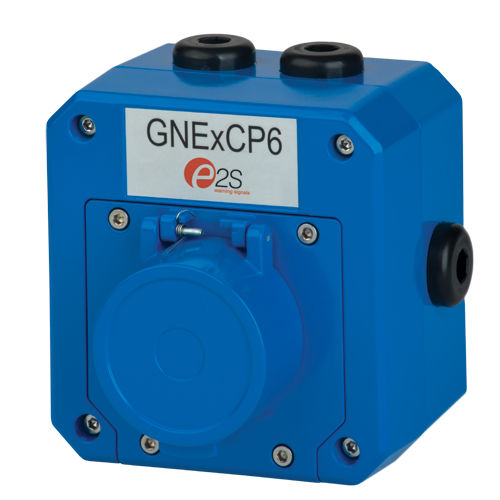

GNExCP6B-PT Tool Reset Call Point (with EOL & series devices)
The GNExCP6B manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. All types are available with EOL or series resistors, diode or Zener diodes or an LED indicator and also with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.
Options:
Alternative housing colours are available to meet
specic requirements.
Single or double pole c/o switch.
DIN rail mounted terminal blocks: 8 x 2.5mm².
Metalised polyester or stainless steel Duty label.
Series and/or End of Line resistors, diodes & Zener diodes
Indicator L.E.D.
Approvals:
ATEX certicate: Sira 09ATEX3286X,
IEC 60079-0:2007 Ed 5, EN 60079-1:2004,
EN 60079-7:2007, IEC 60079-18:2009 Ed 3,
EN 61241-1:2004
IECEx certicate: IECEx SIR 09.0121X,
IEC 60079-0:2007-10 Edition: 5,
IEC 60079-1:2003 Edition: 5,
IEC 60079-18:2009 Edition: 3,
IEC 60079-7:2006-07 Edition: 4,
IEC 61241-1:2004 Edition: 1
