Explosion-proof manual call point BExCP3A-PT/BExCP3B-PT

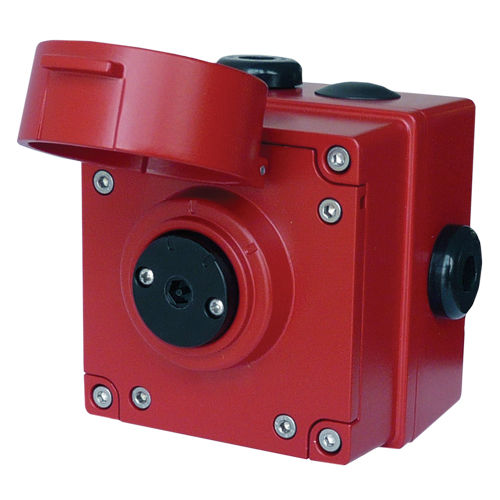

BExCP3A-PT/BExCP3B-PT Tool Reset Call Point The BExCP3A-PT and BExCP3B-PT push button, tool resettable manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the special key supplied with the unit. The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated. Options: Alternative housing colours are available to meet specic requirements. DIN rail mounted terminal blocks: 8 x 2.5mm² Metalised Polyester Duty label. Series and/or End of Line resistors. Approvals: ATEX certicate: Sira 09ATEX3286X, IEC 60079-0:2007 Ed 5, EN 60079-1:2004, EN 60079-7:2007, IEC 60079-18:2009 Ed 3, EN 61241-1:2004 IECEx certicate: IECEx SIR 09.0121X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-1:2003 Edition: 5, IEC 60079-18:2009 Edition: 3, IEC 60079-7:2006-07 Edition: 4, IEC 61241-1:2004 Edition: 1 Inmetro certicate: 10-IEx-0011X GOST-R certificate: POCC GB.JB05.B03365
