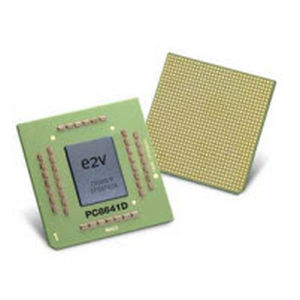

Processor PC8641 / PC8641D

Features • Dual-e600 Power Architecture™ Processor Cores • PD Typically 23.9W at 1.25 GHz (VDD = 1.05V) ; 32.1W at 1.5 GHz (VDD = 1.1V) • Selectable MPX Bus up to 600MHz (64 bits) • Integrated L1: 32 KB Instruction and 32 KB Data Cache (Per Core with Parity Protection) • Integrated L2: 1 MB Per Core with Optional ECC • Serial RapidIO Interface 1x, 4x (1.25, 2.5 and 3.125Gbaud) • PCI Express Interface 1x, 4x or 8x (2.5Gbaud/lane) • Ethernet Interface : Four 10/100/1000 Ethernet Controllers • Memory Controller : Support Dual 64-bit DDR and DDRII with up to 600 MHz Data Rate with ECC • Up to 16GB Per Memory Controller. • DMA Controller : Four Independent Channels with Bandwith Control per Channel • fINT Max = 1500 MHz • fBUS Max = 600 MHz Overview The PC8641 processor family integrates either one or two Power Architecture e600 processor cores with system logic required for networking, storage, wireless infrastructure, and general-purpose embedded applications. The PC8641 integrates one e600 core while the PC8641D integrates two cores.
