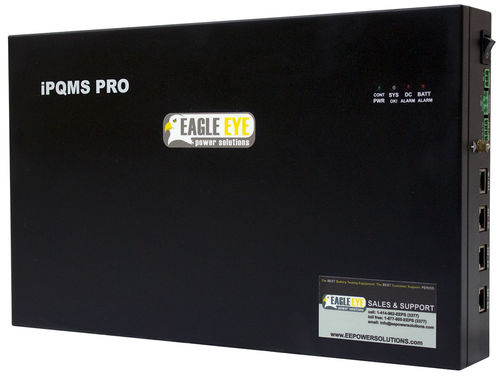

Voltage monitoring system iPQMS-Pro, 48 cell

batteryfor UPS

Eagle Eye's iPQMS-Pro UPS Battery Monitoring System is a scalable system designed to monitor the health of critical battery systems by measuring: string voltage and current, jar/cell voltage and impedance, connection resistance, and temperature. A non-intrusive system, the iPQMS-Pro measures critical battery parameters via clamps connected to the inter-cell connections of the battery system. A single system includes an MPU (Main Processing Unit) and all required cables and clamps for installation. One MPU can connect to (48) cells, however up to ten MPU's can be configured in daisy-chain for monitoring of up to (480) cells. Measured data is communicated via TCP/IP or RS232 back to the included Centroid Snet Battery Management Software. The iPQMS-Pro records, trends, and report data against user-defined tolerances. In the event that a measured parameter is out of tolerance, an outbreak alarm will occur in the software and email/SMS alerts will be generated. The iPQMS-Pro is an ideal solution for monitoring and predicting the health and performance of UPS Cabinets, Telecom Systems, and other backup power systems. Reduce maintenance costs, improve up-time and manage battery assets effectively by using the iPQMS-Pro battery monitoring solution. Real-time battery monitoring systems protects the user from costly downtime, data loss, and security risks. Real-time battery monitoring also reduces maintenance and replacement costs by maximizing battery life. If you are testing a larger system see Eagle Eye’s iPQMS Battery Monitoring System which can monitor up to 448 jars (or 448 cells), and offers the same protection and reliability as the iPQMS-Pro Battery Monitoring System.
