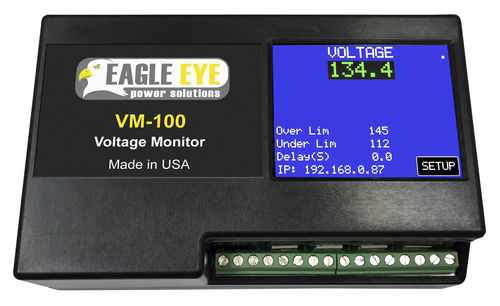

Voltage battery monitor 24, 48, 125, 250 V | VM-100

Voltage & Ground Fault Monitoring The VGM-Series is an easy-to-use, inexpensive solution for monitoring battery voltage and ground faults. The GFM-100 works for 24V, 48V, 120V, & 240V applications. It reads battery bus status, detects out-of-limit conditions, and provides alarm indications per-user settings. The ground fault monitor’s status, under-voltage, and over-voltage trip values, ground fault, time delay, and IP address settings are easily accessible on the user-friendly color touchscreen interface. Modbus protocol is available on all units. Installation of the VGM-Series monitor is simple – it can be installed as a wall, panel, or DIN rail unit, and includes a mounting kit for DIN rail or wall mounts. A variety of models are available for the VGM-Series, including voltage and ground fault monitoring, or just voltage or ground fault monitoring independently. Benefits • - Color touchscreen simple interface • - Ethernet connectivity to web interface, (4) Form C Contacts • - Modbus TCP/IP output for all measured parameters • - Simple installation with mounting kit for DIN rail or wall mount • - Monitors 24V, 48V, 120V, & 240V batteries • - Configurations available for different needs
