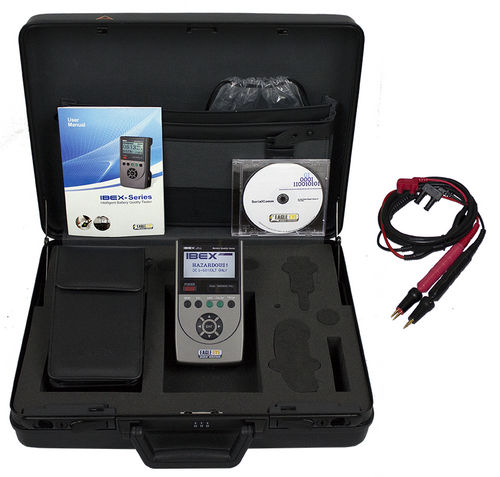

Voltage tester IBEX- EX | 5 - 6 000 Ah

battery

Eagle Eye’s IBEX-Series are the premier battery resistance testers in Eagle Eye’s portable battery tester line. The IBEX-Series is the fastest internal battery resistance tester/portable battery tester in the industry today, providing measurement results in just three seconds. The IBEX battery tester is available in three different models: IBEX-Ultra, IBEX-Pro, and IBEX-EX. Each model has different accessories and capabilities – see the table below for differences between them. Every IBEX model accurately and quickly tests a battery’s state-of-health while the system is online. Test Internal ohmic Resistance (mΩ) or Conductance (Siemens), Connection Resistance, Jar Voltage (V), Temperature, DC Current and Ripple Current. Benefits IEEE Recommended: Meets IEEE Std 1188-1996 and 2005 “Recommended Practice for Maintenance, Testing, and Replacement for Stationary Applications Precise & Repeatable: Utilizing the world’s first ripple removing algorithm, the IBEX identifies problematic or failing cells Durable: With unique design and limited current required, the IBEX will outlast all other testers Online Tester: Test batteries while they are in service Fast: Automatically measures and stores data in just 3-4 seconds Comprehensive Battery Diagnostic Software: The included software provides an easy to use interface for data management, trending analysis, exporting to excel, viewing graphs and creating reports Battery Bank Management: Manage all of your battery banks with the IBEX-Ultra. All necessary battery banks can be managed at your PC with the included software Multiple Settings: Built-in and automatic measuring algorithm settings
