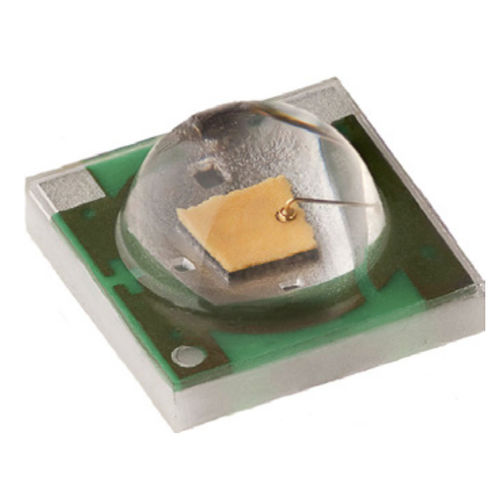

White LED XPC

redgreenblue

The XLamp® XP-C LED combines the proven lighting-class performance and reliability of the XLamp XR-E LED in a package with an 80% smaller footprint. The XLamp XP-C LED continues Cree LED's history of innovation in LEDs for lighting applications with wide viewing angle, symmetrical package, unlimited floor life and electrically neutral thermal path. XLamp LEDs bring high performance and quality of light to a wide range of lighting applications, including colo-changing lighting, portable and personal lighting, outdoor lighting, indoor directional lighting, commercial lighting and emergency-vehicle lighting. FEATURES • Available in white (2600 K to 10,000 K CCT), blue, green, amber, red-orange, red • Maximum drive current: up to 500 mA • Low thermal resistance: as low as 10 °C/W • Wide viewing angle: 110° – 125° • Unlimited floor life at ≤ 30 ºC/85% RH • Reflow solderable – JEDEC J-STD‑020C compatible • Electrically neutral thermal path • RoHS and REACh compliant • UL® recognized component (E349212)
