Power LED driver HLB
constant voltage

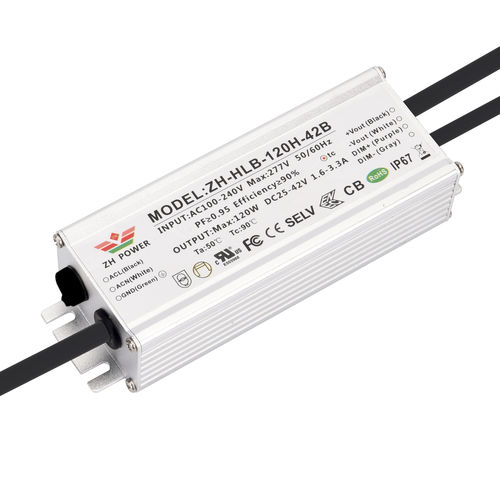

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage - image - 2

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage - image - 3

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage - image - 4

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage - image - 5

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage - image - 6

Power LED driver - HLB - Eagle New Energy Technology Co., Ltd - constant voltage - image - 7

Add to favorites

Compare this product

Characteristics

Other characteristics

power, constant voltage

Electrical power

Min.: 30 W

Max.: 240 W

Input voltage

Min.: 100 V

Max.: 277 V

Description

Universal Input 90-305Vac Built-in Active RFC Function, High PF, Low THD The whole series adopts a two-stage circuit, Output no flicker Protections: Short Circuit, Over-Current, Over-Voltage, Over Temperature Built-in SCP. OCP.OVP.OTP function Efficiency up to 91% 6KV/5KV surge protection Working temperature: -40°C – +60°C, power should be derated at 70°C Built-in 3 in 1 dimming function, intelligent time control dimming Built-in optional output constant voltage auxiliary driver (+12V) Certification(UL,SAA,TUV,BIS,FCC,ENEC,CCC,ROHS,CE,CB) IP67, suitable for dry, damp, and wet locations Aluminum housing, cooling by free air convection
