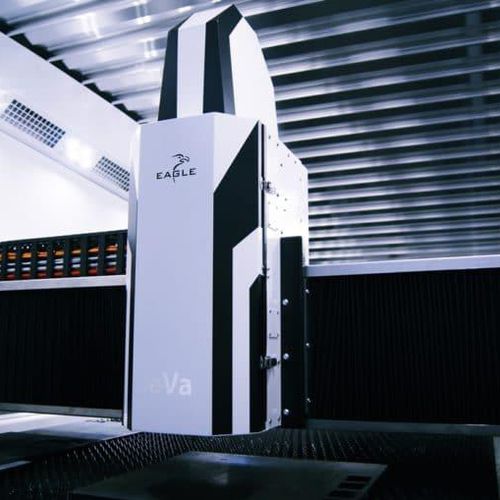

Fiber laser cutting head eVa

3-axis

It should be emphasized that it is extremely difficult to construct a 12 kW laser cutting machine. Especially when it comes to dynamic and efficient machines. This solution must be lightweight, ergonomic and ideal for optics. The last parameter is fundamental to the correct operation of the optics installed in the cutting head, especially at high power rates of up to 12 kW. The novelty and innovation of the device is manifested in the fact that, unlike existing constructions, it is simultaneously a Z axis and consists of two rather than one body. On the other hand, the bodies are movably mounted on each other in 3 axes and connected to each other by a flexible bellows. Such a solution made it possible to achieve the special features of the cutting head with wide functionality. Most importantly: all the optics are fixed and there are no moving parts inside the head. Removing all drives from the head and all moving parts keeps the head clean. With this solution you can successfully transfer power up to 12 kW without risk of damage. Let us add that the design of the device positively influences durability and failure-freeness. Below we present our innovative cutting head, which is installed in the iNspire and eVision series cutters.
