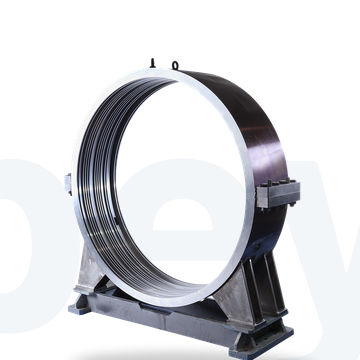

Carbon seal Espey Magna500+
housingvacuumshaft

carbon seal
carbon seal
carbon seal
Add to favorites
Compare this product


Characteristics

Material
carbon
Application
housing, vacuum, shaft
Fluid
gas
Other characteristics
radial, spring
Temperature limit

Max.: 800 °C
(1,472 °F)

Min.: 500 °C
(932 °F)

Pressure limit

3 bar
(43.5 psi)

Diameter

4,000 mm
(157.48 in)

Description

Features Split housing design Segmented and self-adjusting seal rings Virtually maintenance- and wearfree Dry-running Suitable for horizontal and vertical use Advantages Easy Dis-/Assembly due to split housing design Robust design Reduced leakage Reduced energy cost Reduced whistling noises Insensitive to aggressive media Operating range Shaft diameter: d = up to 4,000 mm (137.79 “) Pressure: p = Vacuum … 3 bar (15 PSI) abs. Design-Temperature: t = up to 500 °C (932 °F), with inert gas 800 °C+ (1,472 °F+) Sliding velocity: vg = up to 40 m/s (131 ft/s), depending on seal diameter Radial movement: up to 50 mm (1.97 “) Axial movement: theoretically unlimited Project specific special designs possible. Materials Seal ring: Carbon, Inconel Housing: 1.4571, 1.4878, 1.4832 Tension spring / detent: 1.4571 Other materials on request. Dimensions on request. Standards and approvals FDA ATEX Recommended applications Dry and wet grinding Pyrolysis Biomass combustion Crystalizing Rotary kiln Mill Reactor Mixer, blender, dryer …
