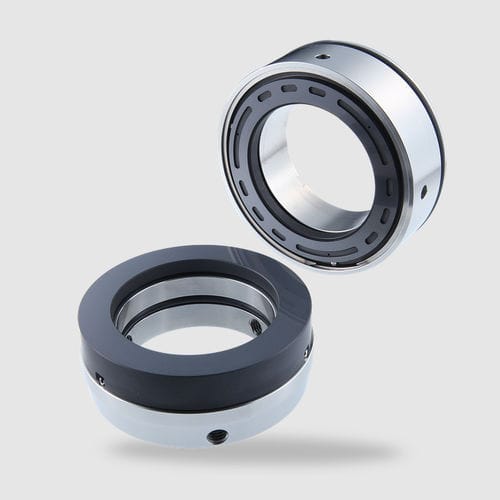

Multiple-spring mechanical seal EM300for pumpmetalsteel
Add to favorites
Compare this product
Characteristics
- Type
- multiple-spring
- Applications
- for pump
- Material
- metal, steel
- Domain
- chemical
- Other characteristics
- face, dry
- Operating pressure
Max.: 60 bar
(870 psi)Min.: 2 bar
(29 psi)- Operating temperature
Max.: 200 °C
(392 °F)Min.: -20 °C
(-4 °F)
Description
Balanced
Independent of direction of rotation
Stationary multiple springs
API682 arrangement 2 containment seal
Advantages
Dry contact secondary seal
Prevention of hazardous emissions
Can be used as a secondary seal of tandem seal in liquid applications
Sliding velocity: vg = 25 m/s (82 ft/s)
Materials
Seal face: Special carbon
Seat: Silicon carbide (Q1, Q2)
Secondary seals: FKM (V)
Metal parts: CrNiMo steel (G)
Standards and approvals
API 682 / ISO 21049
Recommended applications
Chemical industry
Refining technology
