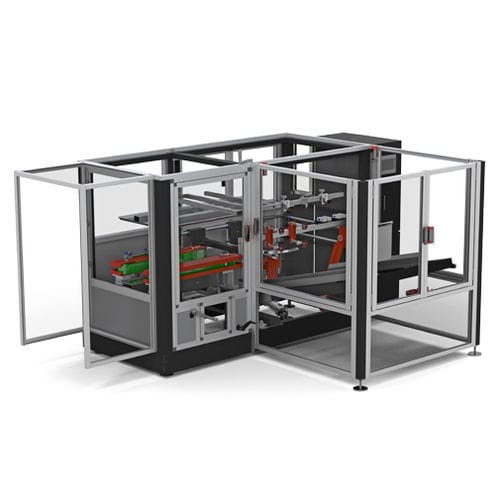

Automatic case former
The basic structure consists of a magazine for folded cartons, a system to open them, close the lower flaps and seal the bottom. Then deliver the box assembled with the bottom closed and ready to introduce products vertically.
The folded boxes located in the machine’s magazine are taken by a vacuum suction cup system that opens them and places them in the forming position.
The boxes are transported though the machine for a quick sealed of the bottom flaps.
Standard Machine
Variable production depending on carton format up to 10 boxes/min
Dimensional adjustment: Manual
Bottom flaps folding
Air Pressure: 6 bar.
PLC Control system
Touch screen LCD
Bottom flaps closing with adhesive tape
Tape end detector with alarm
Electric power 220V 50 Hz
Installed Power 0,5 Kw
Pneumatic installation 6 bar.
Weight 400 kg.
Carton boxes
Type: RSC or B1
Length: 250 to 530 mm.
Width: 150 to 400 mm.
Height: 225 to 600 mm.
It is not possible to combine all the maximum dimensions
Other dimensions on demand (it can add an extra cost)
Standard machine variations
Stainless steel 304
Bottom flaps closing with Hot-Melt
Flaps opener for automatic filling
Automatic dimensional adjustment
Motorized horizontal cases magazine
Other colors on demand (it can add an extra cost)
