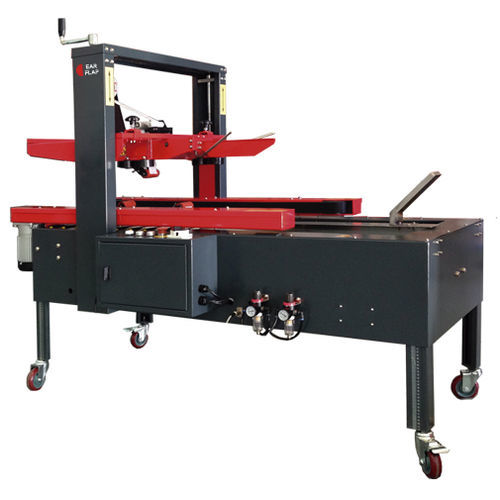

Semi-automatic case former-sealer P15F

adhesive tape

Semiautomatic single format case sealer with semiautomatic case former Reinforced metal basic structure with a lower sealing head inserted on a section of metal rollers attached to a metal bridge that supports the upper sealing head. The boxes already formed are taken by a system of belts that transport them through the machine for quick closing of the lower and upper flaps, leaving the box formed and sealed. Height and width adjustment is done manually. Standard machine carton draghino by side belts with independent engines Top and bottom carton sealing Weight 200 kg. Adjustable working height from 570 mm to 830 mm Adjustable tape tension An interchangeable taping head which allows using tape from 48 mm to 72 mm width. Metal rollers for the transportation of carton Adjustable top guides to keep flaps squared while sealing Hand wheel adjustment of carton Width and height  Emergency stop on the top taping head for quick access Carton boxes Type: RSC or B1 Length: 200 to 500 mm. Width: 200 to 400 mm. Height: 130 to 480 mm Other dimensions on demand (it can add an extra cost) The quality and format of these cases must be verified and approved by the EAR FLAP technical office. Standard machine variations Stainless steel AISI 304 3-flaps folder (just in model P15) Flap Holder (for bottom flaps) Infeed/outfeed free rollers conveyor 500 mm length  Infeed/outfeed free rollers conveyor 1000 mm length  Extensible free wheels outfeed conveyor from 1,2 to 4,8 m. Extensible conveyor connector Other colors on request (but can add an extra cost)
