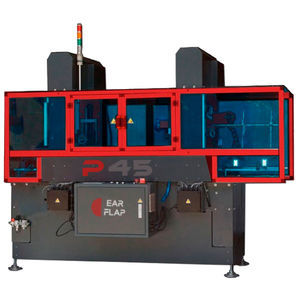

Semiautomatic case sealer for random formats
Reinforced metal basic structure with a lower sealing head inserted on a section of metal rollers attached to a metal bridge that supports the upper sealing head.The boxes already formed are taken by a system of belts that transport them through the machine for a quick closing of the lower and upper flaps, leaving the box formed and sealed.
Automatic height and width adjustment.
Stardard machine
Carton dragging by side belts with independent engines
Top and bottom carton sealing
Weight 140 kg.
Adjustable height from 600 to 750 mm.
Adjustable tape tension
An interchangeable taping head which allows using tape from 48 to 72 mm width.
Metal rollers for the transportation of the carton
Adjustable top guides to keep flaps squared while sealing
Automatic adjustment of carton width and height
Emergency stop on the top taping head for a quick access
Carton boxes
Type: RSC or B1
Length: 100 to ∞ mm.
Width: 130 to 490 mm.
Height: 120 to 500 mm
Other dimensions on demand (it can add an extra cost)
Standard machine variations
Stainless steel AISI 304
Infeed/outfeed free rollers conveyor 500 mm length
Infeed/outfeed free rollers conveyor 1000 mm length
Extensible free wheels outfeed conveyor from 1,2m to 4,8m
Extensible conveyor connector
Other colors on request (it can add an extra cost)
